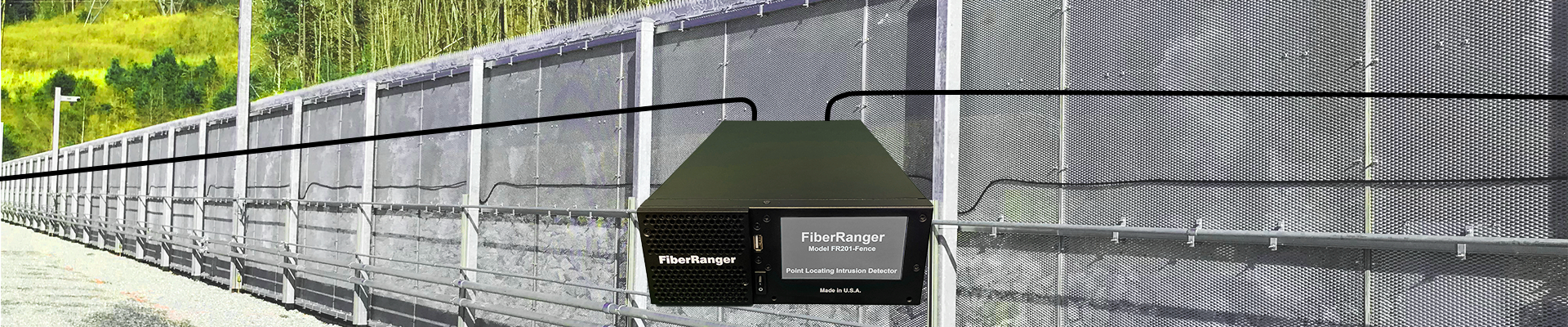

FR201-Fence

Medium Range and High Location Accuracy

Medium Range (up to 20 km per system, up to 10 km each sensor) with pinpoint location accuracy of +/ 6 m. The system has 2 sensors.

Small Form Factor

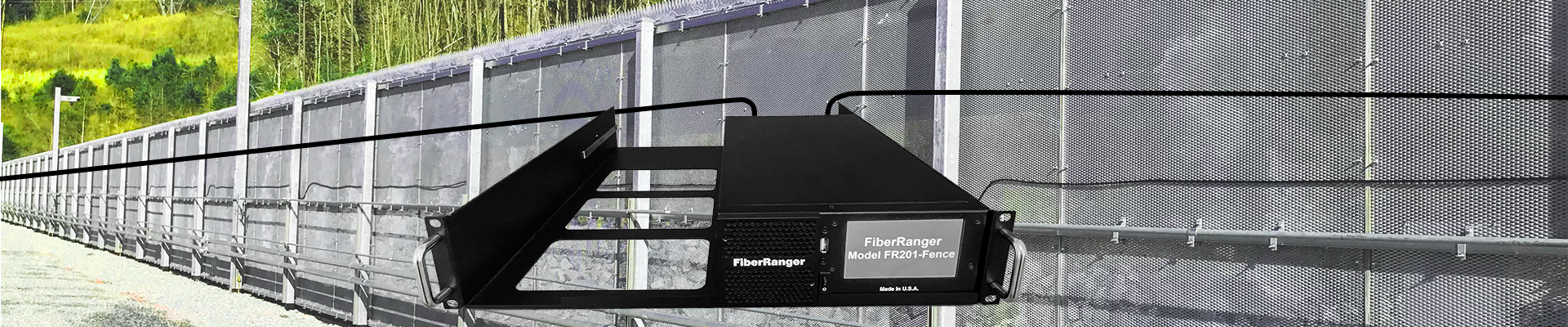

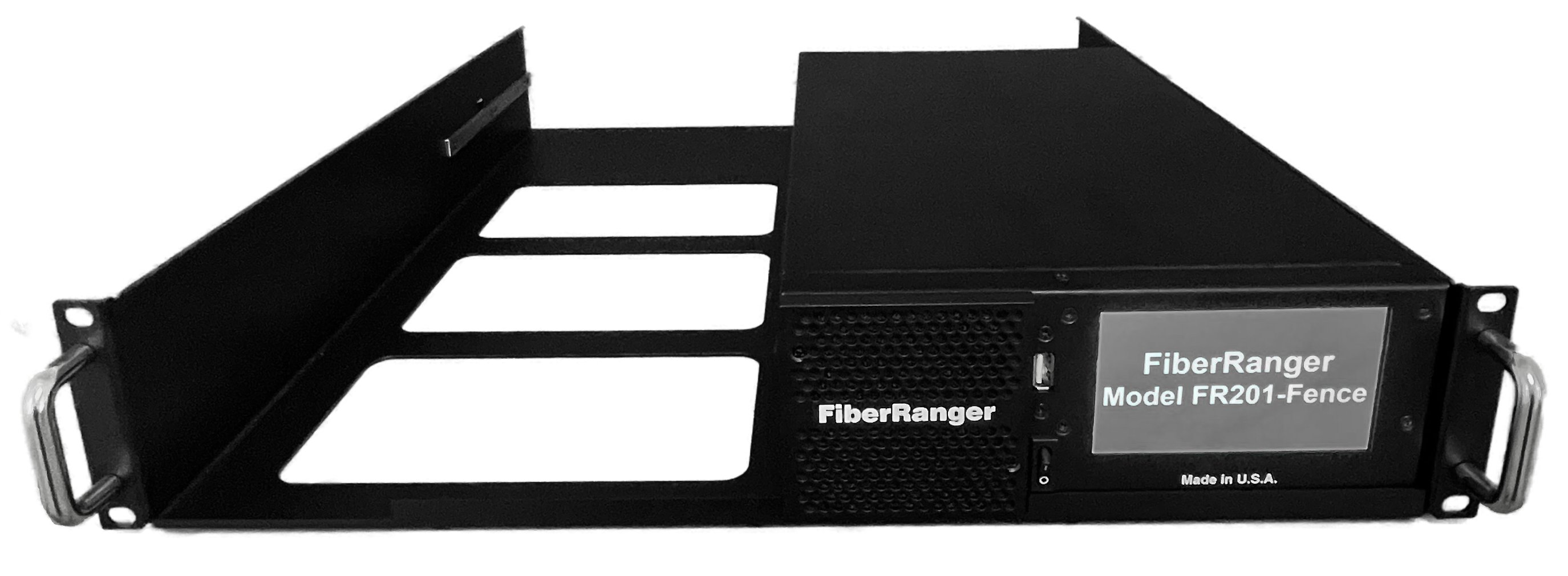

Smallest form factor in the market. FR201-Fence system takes a half of 2U space in a 19” rack. In addition to taking less rack space, shipping and handling is made easy.

Simple Installation and Maintenance Free

Easy to install, calibrate, and tune. Zones are configured using software, adding flexibility to an installation. No electrical power required in the field, and can be installed on most types of fences. Once installed, maintenance is extremely low.

Cut Immunity

The system is immune to a cable cut when installed in a loop configuration. Each sensor detects up to the point of a cut.

Advanced Signal Processing

Algorithms use pattern recognition for Classification and advanced background rejection leading to superior Probability of Detection and a low nuisance alarm rate.

Advanced Features

GPS mapping of site perimeter, detection of multiple simultaneous events, remote connectivity, and remote troubleshooting.

Immunity

The sensor is based on fiber-optic cable, which is immune to EMI / RFI and lightning.

Certification

FCC Part 15 Subpart B Class A, CE (EMC Directive 2014/30/EU), ROHS.

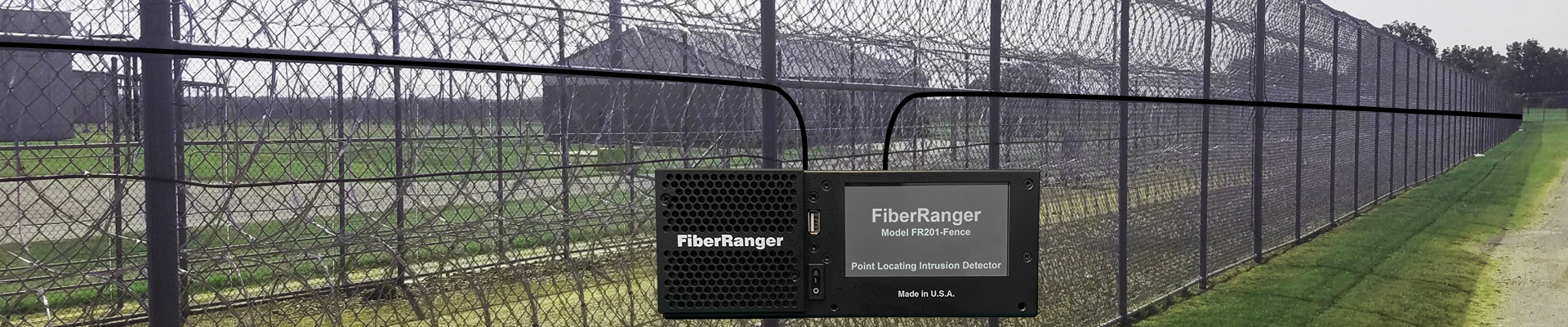

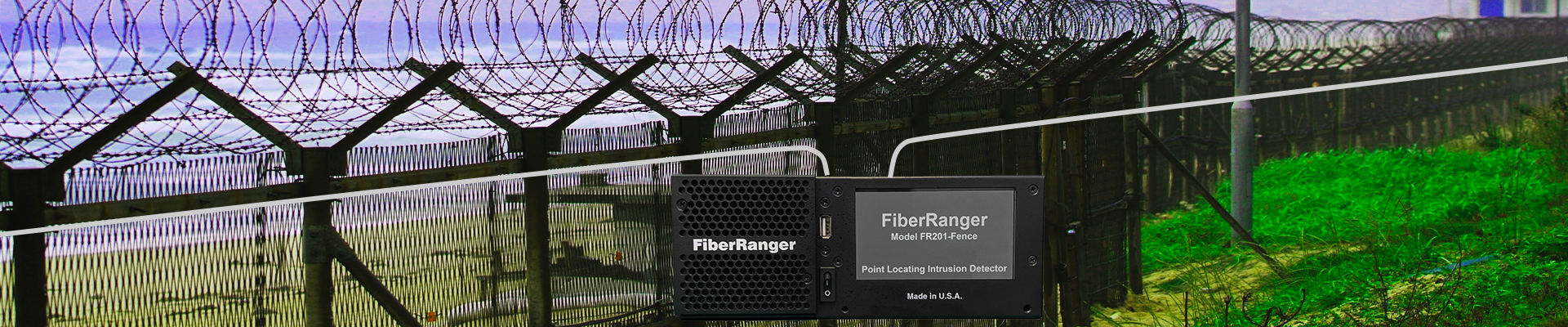

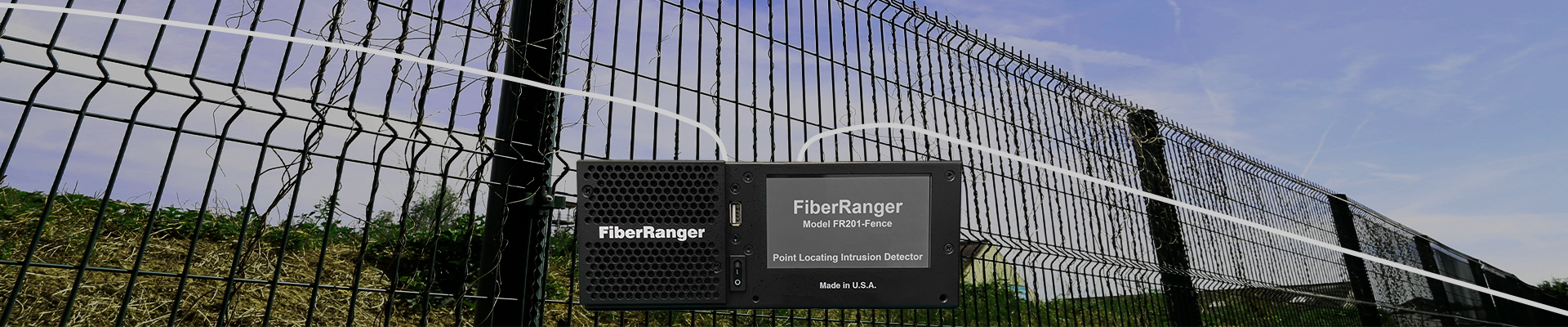

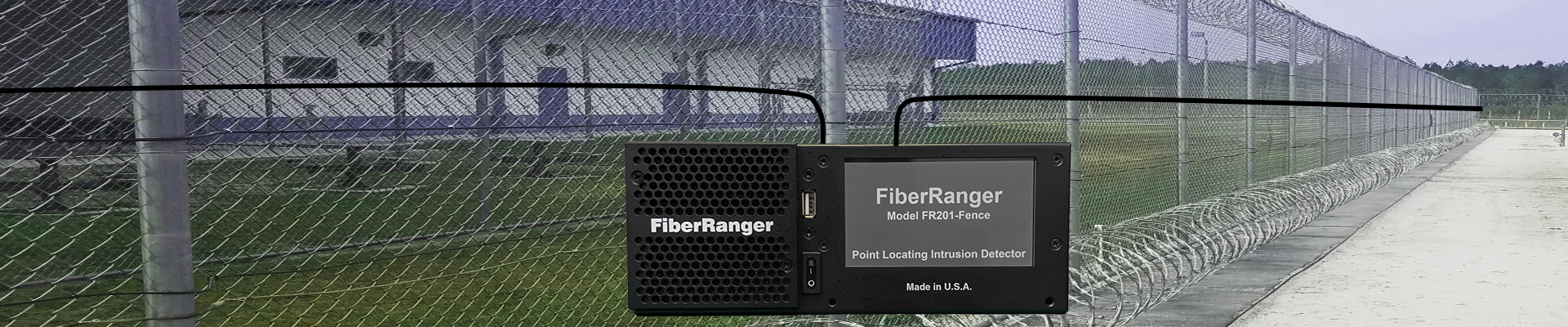

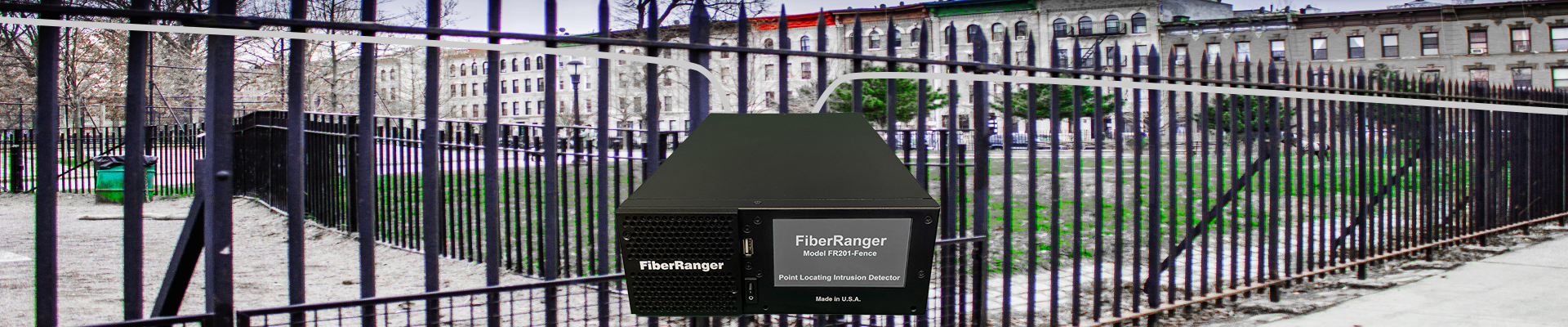

FR201-Fence is a ranging product that can detect, classify, and precisely locate an intrusion on a fence to within a few meters. It uses advanced artificial intelligence and pattern recognition capabilities to bring the highest probability of detection and lowest nuisance alarms rate in the industry. Intelligent background rejection removes the effect of undesirable factors such as wind, rain, thunder, vehicles, trains, planes, etc. In addition, the User Interface is developed to be intuitive with a high degree of automation to make it highly user friendly. Special attention was given to the reliability of the system, including cut immunity and a designed 100% redundancy. FR201-Fence can be used on most flexible and rigid fence perimeters. Lead in capabilities allows for sensing to start right on the fence while controller is installed inside a controller room. Installation, calibration, and tuning are simple and intuitive.
